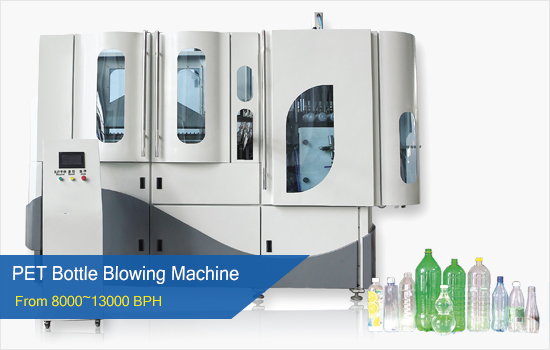

PET Bottle Blow Molding Machine
Looking for a high-quality PET bottle-making machine with excellent quality and good price? you can find a suitable PET bottle machine according to your budget, and output capacity. We only provide the best machine with the best price to our customers. Please contact our team today to get a quote
Unlock the potential of your PET bottle production with our state-of-the-art blow machine!
✨Efficient & Reliable✨

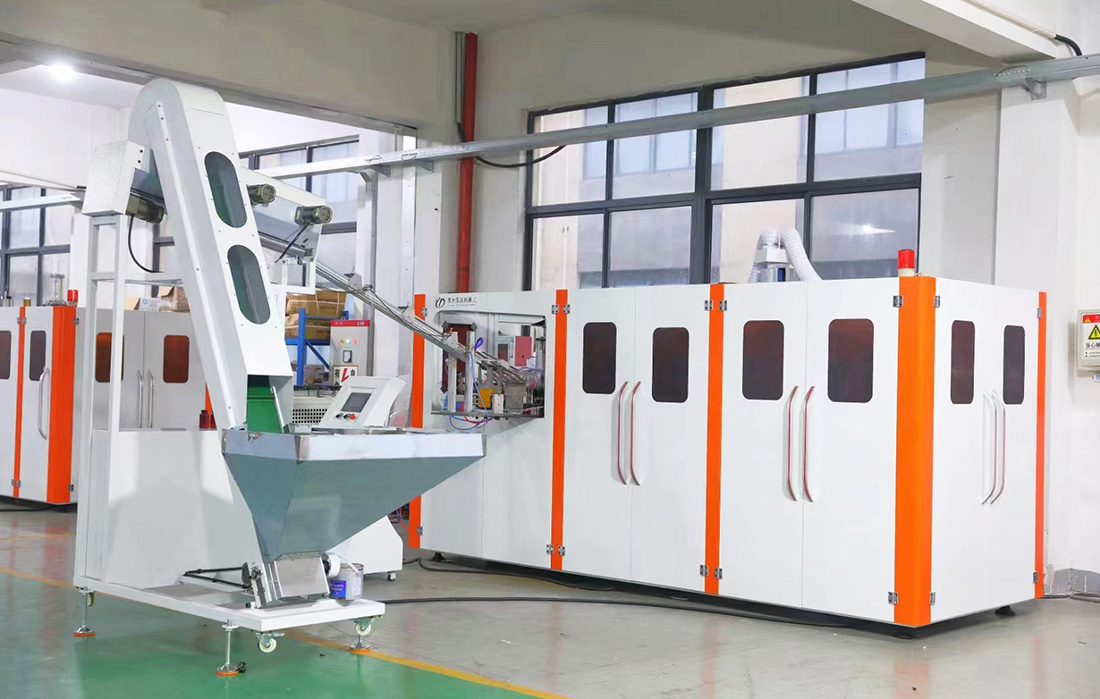

Our PET bottle blow machine is designed for maximum efficiency and reliability. With its precision engineering and robust construction, it ensures consistent, high-quality bottle production, round the clock.
🌱Eco-Friendly🌱
We prioritize sustainability. Our machine is energy-efficient, reducing your carbon footprint while maximizing production output.
🚀Versatile & Scalable🚀
Adaptable to a wide range of bottle sizes and shapes, our machine offers flexibility to meet your evolving needs. Scale up production effortlessly as your business grows.
💼Support You Can Trust💼
Backed by a team of experts, we provide comprehensive technical support and maintenance services to keep your machine running smoothly.
Choose our PET bottle blow machine and take your business to new heights!
Contact us today for more information and a personalized quote.
Model | YDB-2 | YDB-2A | YDB-2(Jars) | YDB-2A(Jars) | YDB-4 | YDB-4A | |
Host parameters | Number of Cavity(cavities) | 2 | 2 | 2 | 2 | 4 | 4 |
Clamping Force(Kg) | 35000 | 45000 | 35000 | 45000 | 40000 | 48000 | |
Mold stroke(mm) | 90 | 110 | 120 | 110 | 90 | 125 | |
Stretch rod stroke(mm) | 300 | 400 | 300 | 400 | 260 | 330 | |
Bottom stroke(mm) | 50 | 50 | 50 | 50 | 50 | 50 | |
Bottle spacing(mm) | 76.2 | 114.3 | 76.2 | 114.3 | 76.2 | 114.3 | |
Number of embryos(pcs) | 66 | 52 | 66 | 52 | 95 | 82 | |
Product parameters | Max. capacity(ml) | 600 | 1500 | 600 | 1500 | 600 | 1500 |
Max.bottle height(mm) | 260 | 330 | 200 | 330 | 260 | 330 | |
Max. bottle diameter(mm) | 68 | 105 | 85 | 105 | 68 | 105 | |
Theoretical output(bph) | 2500 | 2000 | 2500 | 2000 | 4500 | 4000 | |
Electrical parameters | Number of heating boxes (pcs) | 2*2 | 4*4 | 2*2 | 4*4 | 4*4 | 5*5 |
Number of lamps(pcs) | 2*8 | 4*8 | 2*8 | 4*8 | 4*7 | 5*9 | |
Total power capacity(Kw) | 36 | 50 | 36 | 50 | 45 | 80 | |
Air source parameters | Work pressure(Mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
Blowing pressure(Mpa) | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | |
High pressure air consumption(l/min) | 2.4/30 | 2.4/30 | 2.4/30 | 2.4/30 | 3.6/30 | 3.6/30 | |
Configuration power(Kw) | 30 | 30 | 30 | 30 | 45 | 45 | |
Cooling water | Pressure(Mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
Rated power(Hp) | 3 | 3 | 3 | 3 | 5 | 5 | |
Dimension | Host size(mm) | 2700*1800*2200 | 3300*1800*2000 | 2700*1800*2200 | 3300*1800*2000 | 3900*1800*2200 | 4800*2200*2200 |
Weight(Kg) | 2000 | 2500 | 2000 | 2500 | 3500 | 4500 | |
Model | YDB-6 | YDB-6A | YDB-A5L | YDB-A25L | |
Host parameters | Number of Cavity(cavities) | 4 | 4 | 2 | 1 |
Clamping Force(kg) | 56000 | 65000 | 65000 | 65000 | |
Mold stroke(mm) | 90 | 125 | 260 | 320 | |
Stretch rod stroke(mm) | 260 | 330 | 350 | 460 | |
Bottom stroke(mm) | 50 | 50 | 50 | 50 | |
Bottle spacing(mm) | 76.2 | 114.3 | 220 | 300 | |
Number of embryos(pcs) | 106 | 92 | 80 | 48 | |
Product parameters | Max. capacity(ml) | 600 | 1500 | 6000 | 25000 |
Max.bottle height(mm) | 260 | 330 | 350 | 460 | |
Max. bottle diameter(mm) | 68 | 105 | 180 | 230 | |
Theoretical output(bph) | 7200 | 6000 | 1500 | 400 | |
Electrical parameters | Number of heating boxes (pcs) | 4*4 | 5*8 | 4*4 | 4*4 |
Number of lamps(pcs) | 4*8 | 5*9 | 4*10 | 4*120 | |
Total power capacity(kw) | 69.5 | 100 | 82 | 80 | |
Air source parameters | Work pressure(mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
Blowing pressure(mpa) | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | |
High pressure air consumption(l/min) | 5.0/30 | 5.0/30 | 4.8/30 | 4.0/30 | |
Configuration power(kw) | 60 | 60 | 60 | 44 | |
Cooling water | Pressure(Mpa) | 0.4 | 0.4 | 0.4 | 0.4 |
Rated power(Hp) | 5 | 5 | 5 | 5 | |
Dimension | Host size(mm) | 4200*2100*2200 | 5200*2100*2200 | 4000*1800*2200 | 4000*1800*2200 |
Weight(Kg) | 6000 | 7000 | 4500 | 4500 | |
High Speed Series
