Injection Molding machine ｜Plastic Injection Molding Machine Manufacturer

70 Ton ~ 300 Ton
330 Ton ~ 1000 Ton

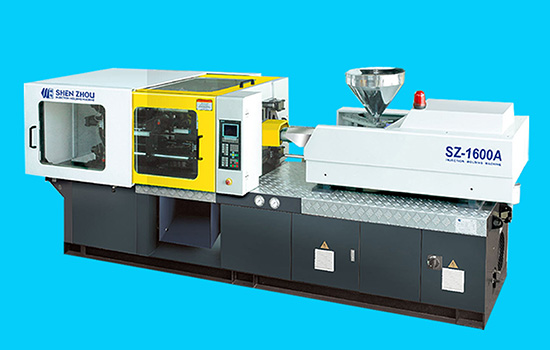

Model	SZ-700A			SZ-950A			SZ-1300A			SZ-1600A
Injection unit
Screw diameter(mm)	32	35	38	30	35	40	35	40	45	45	50	55
Screw L/D ratio(L/D)	20	18.8	17.8	24.5	21	18.4	24	21	18.7	23.3	21	19.1
Theoretical shot volume(cm³)	112.5	135	158.6	113	154	201	173	226	286	358	442	534
Shot weight(PS/g)	101	121	142	103	140	183	158	206	260	326	402	486
Injection pressure(Mpa)	203	170	114	249	183	140	235	180	142	219	178	147
Theoretical injection rate(PS,g/s)	62	72	84	67.5	91.8	120	110	143	181	142	175	212
Plasticizing capacity(g/s)	11	12	14	8.3	12.5	18	13.8	19.7	27.1	20.1	26.5	34.2
Screw torque(N.m)	390			510			740			1250
Max.Screw rotate speed(r/min)	200			260			250			200
Injection stroke(mm)	140			160			180			225
Clamping unit
Max.Clamping force(KN)	700			950			1300			1600
Max.Opening stroke(mm)	290			340			400			460
Space between tie bars(V×H/mm)	320×320			360×360			420×420			480×480
Mould height(mm)	100-320			135-380			160-440			180-500
Max.Daylight(mm)	610			720			840			960
Ejector force(KN)	27			25.4			31.4			45.2
Ejector stroke(mm)	60			85			100			115
Ejector quantity	1			5			5			5
Other
Pump motor power(kw)	9			11			13			15
Pump pressure(Mpa)	14			16			16			16
Heating power(kw)	6.2			7.3			9.2			13.6
Heating zone	4			4			4			4
Size(L×W×H/m)	3.6×1.2×1.6			4.25×1.2×1.8			4.7×1.25×1.85			5.3×1.35×1.9
Net weight(T)	2.7			3.2			4.3			5.6
Oil tank capacity(L)	250			260			360			420
International designation	700-210			950-280			1300-410			1600-785

Model	SZ-2000A			SZ-2400A			SZ-2700A			SZ-3000A
Injection unit
Screw diameter(mm)	50	55	60	55	60	65	55	60	65	60	65	70
Screw L/D ratio(L/D)	23.1	21	19.3	22.9	21	19.4	21.8	20	18.4	22.7	21	19.5
Theoretical shot volume(cm³)	491	594	707	665	791	929	598	712	836	848	995	1154
Shot weight(PS/g)	447	540	643	605	720	845	538	641	752	772	905	1050
Injection pressure(Mpa)	215	178	149	210	176	150	200	168	143	207	176	152
Theoretical injection rate(PS,g/s)	145	175	208	176.5	210	245	240	285	334	241	283	328
Plasticizing capacity(g/s)	22.5	28.7	35.4	26.4	32.5	40	38	45	52	35.2	43.3	51.8
Screw torque(N.m)	1510			2000			2530			2530
Max.Screw rotate speed(r/min)	170			150			190			150
Injection stroke(mm)	250			280			250			300
Clamping unit
Max.Clamping force(KN)	2000			2400			2700			3000
Max.Opening stroke(mm)	500			530			550			590
Space between tie bars(V×H/mm)	505×505			555×555			570×570			610×610
Mould height(mm)	190-530			200-570			220-600			220-630
Max.Daylight(mm)	1030			1100			1150			1220
Ejector force(KN)	53.1			61.5			65			70.6
Ejector stroke(mm)	125			135			150			150
Ejector quantity	5			9			9			9
Other
Pump motor power(kw)	18.5			22			30			30
Pump pressure(Mpa)	16			16			16			16
Heating power(kw)	16.6			18.5			18.5			22
Heating zone	4			5			4			5
Size(L×W×H/m)	5.9×1.5×2.0			6.2×1.6×2.1			6.3×1.6×2.15			6.7×1.75×2.25
Net weight(T)	6.8			8			9			11
Oil tank capacity(L)	420			440			560			560
International designation	2000-1060			2400-1390			2700-1200			3000-1750

Model	SZ-3300A			SZ-3800A						SZ-4000A			SZ-4800A
Injection unit
Screw diameter(mm)	65	70	75	65		70		75		70	75	80	70		75		80
Screw L/D ratio(L/D)	21.5	20	18.7	22.6		21		19.6		21.4	20	18.8	22.6		21		19.7
Theoretical shot volume(cm³)	1132	1312	1506	1061		1231		1413		1293	1485	1689	1346		1545		1758
Shot weight(PS/g)	1030	1194	1371	966		1120		1286		1176	1351	1537	1225		1406		1600
Injection pressure(Mpa)	182	157	137	203		175		152		199	173	152	201		175		154
Theoretical injection rate(PS,g/s)	245	285	327	308		357		410		366	395	446	370		423		484
Plasticizing capacity(g/s)	50	60	71	50.6		60.5		71.5		60	65	70	60.4		71.4		83.7
Screw torque(N.m)	3080			2860						4200			3490
Max.Screw rotate speed(r/min)	160			150						165			150
Injection stroke(mm)	340			320						335			350
Clamping unit
Max.Clamping force(KN)	3300			3800						4000			4800
Max.Opening stroke(mm)	660			680						700			770
Space between tie bars(V×H/mm)	660×660			680×680						720×720			760×760
Mould height(mm)	250-700			250-710						280-800			280-790
Max.Daylight(mm)	1360			1390						1500			1560
Ejector force(KN)	100			90.7						126			113.4
Ejector stroke(mm)	165			170						180			195
Ejector quantity	13			13						13			13
Other
Pump motor power(kw)	37			37						37			45
Pump pressure(Mpa)	16			16						16			16
Heating power(kw)	22			25						25			28
Heating zone	5			5						5			5
Size(L×W×H/m)	6.8×1.8×2.3			6.8×2.0×2.3						7.15×2.1×2.35			7.5×2.1×2.45
Net weight(T)	12			15						16.7			20
Oil tank capacity(L)	730			820						820			850
International designation	3300-2060			3800-2150						4000-2570			4800-2710

Model	SZ-5500A			SZ-6500A						SZ-7500A			SZ-10000A
Injection unit
Screw diameter(mm)	80	85	90	85	90		95		100	90	95	105	100	110		120		130
Screw L/D ratio(L/D)	22.3	21	19.8	22.3	21		19.9		18.9	23.2	22	19.9	24.2	22		20.2		18.6
Theoretical shot volume(cm³)	2141	2418	2710	2298	2576		2870		3181	2861	3188	3894	4083	4941		5880		6901
Shot weight(PS/g)	1948	2200	2466	2091	2344		2611		2895	2603	2901	3543	3715	4496		5350		6280
Injection pressure(Mpa)	188	167	149	206	184		164		149	195	175	143	206	171		143		122
Theoretical injection rate(PS,g/s)	427	482	541	400	448		499		553	560	610	700	695	841		1001		1175
Plasticizing capacity(g/s)	80	100	118	60	75		85		100	85	100	110	96	116		130		148
Screw torque(N.m)	5170			6580						7180			8690
Max.Screw rotate speed(r/min)	150			125						130			110
Injection stroke(mm)	425			405						450			520
Clamping unit
Max.Clamping force(KN)	5500			6500						7500			10000
Max.Opening stroke(mm)	820			870						950			1160
Space between tie bars(V×H/mm)	810×810			850×850						950×950			1100×1100
Mould height(mm)	350-820			350-900						400-960			450-1200
Max.Daylight(mm)	1640			1770						1910			2360
Ejector force(KN)	150			200						200			245
Ejector stroke(mm)	210			260						280			350
Ejector quantity	13			17						17			21
Other
Pump motor power(kw)	55			55						67			90
Pump pressure(Mpa)	16			16						16			16
Heating power(kw)	33			37.15						46.45			68.45
Heating zone	6			6						6			6
Size(L×W×H/m)	8.4×2.2×2.6			9.3×2.3×2.7						10.1×2.6×2.8			12.38×2.8×3.5
Net weight(T)	23.5			32						40			60
Oil tank capacity(L)	1000			1200						1500			1700
International designation	5500-4040			6300-4710						7500-5580			10000-8410
