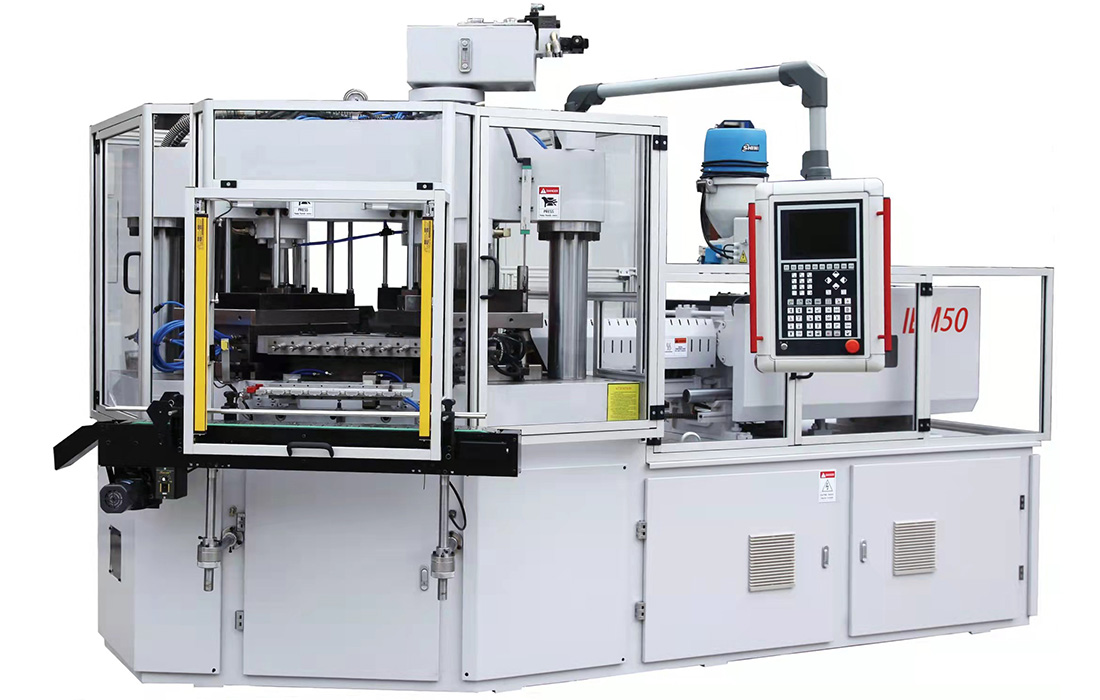

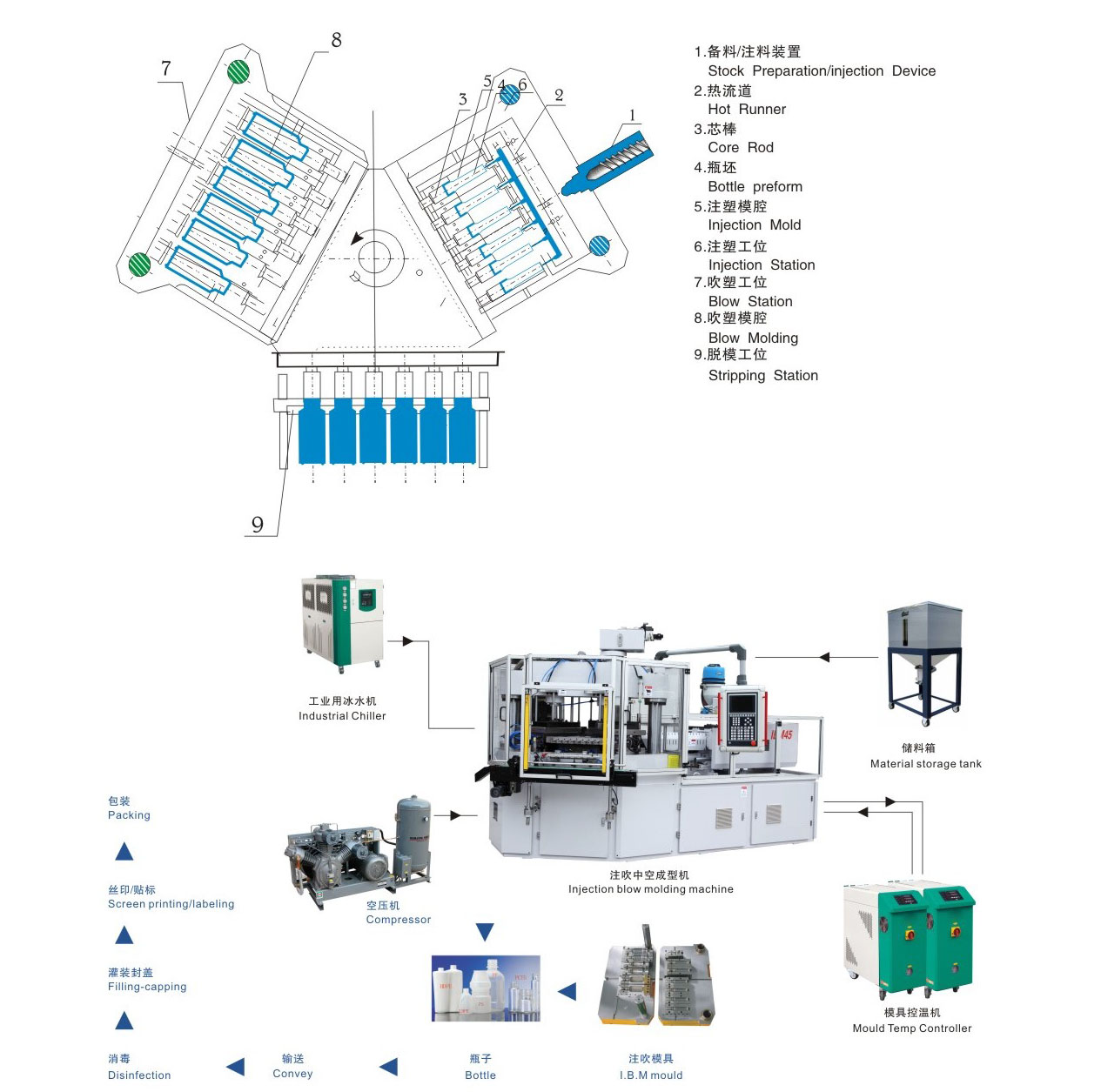

Injection Blow Molding Machine


If you are looking for a blow molding machine to produce small bottles from 3ml to 1000ml, The injection blow molding machine is your best option.

Main Applications:

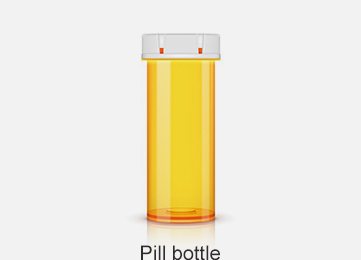

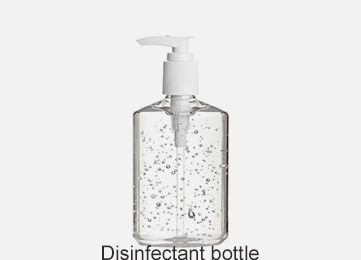

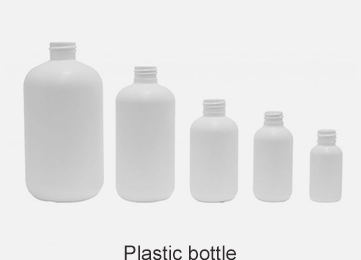

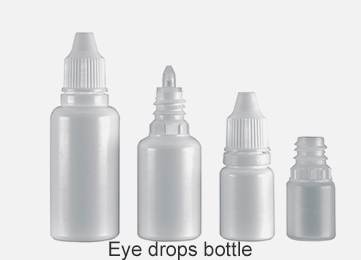

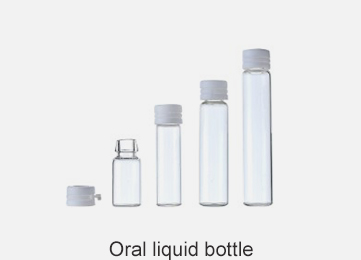

  • Medical Packing Bottles

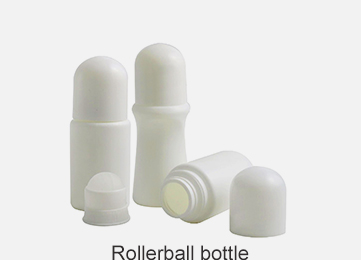

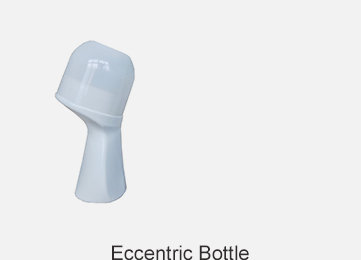

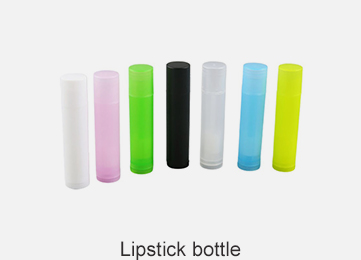

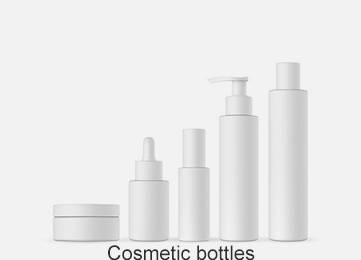

  • Cosmetic Packaging Bottles

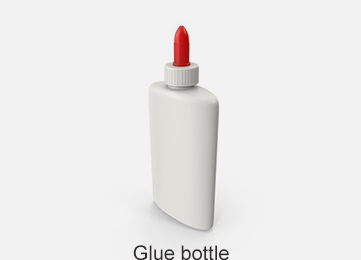

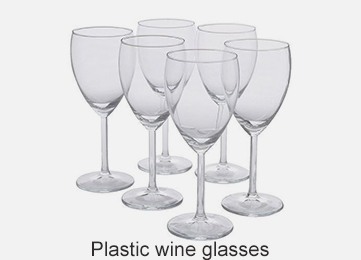

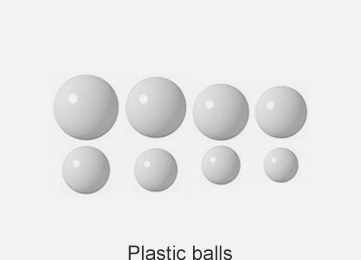

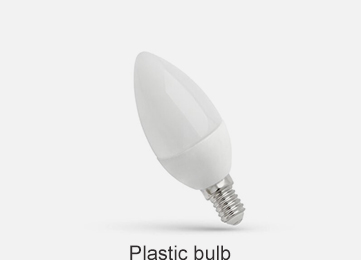

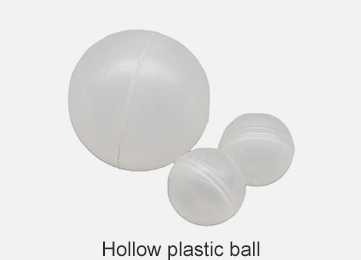

  • Other customized applications
Send Your Inquiry
Whatsapp Message

Model

IBM35

IBM45

IBM65

IBM75

Screw diameter(mm)

40

45

50

50

Injection volume(G)

176

260

314

400

Machine barrel heating power(kw)

7.2

10

10

12

Electric heating control area(QTY)

3

3

3

5

Injection clamping force(KN)

350

450

650

750

Blow molding clamping force(KN)

40

78

89

150

Stencil opening stroke(mm)

120

120

140

140

Maximum size of template(L*W/mm)

420*340

560*390

740*390

840*460

Minimum mold thickness(mm)

180

240

280

280

Drive motor power(kw)

15

22

37

22+37

Mould heating power(kw)

2.8

4.0

5.0

6.0

System pressure(MPA)

14

14

14

14

Compressed air pressure(MPA)

0.8

1.0

1.0

1.0

Compressed air displacement(M³/Min)

≧0.7

≧0.8

≧0.8

≧0.8

Cooling water usage(M³/HR)

3

3

3

3

Machine size (L*W*H/ mm)

3100*1200*2200

3500*1400*2300

4000*1280*2350

4000*1700*2000

Machine weight(T)

3.6

5.5

6.5

10

Product volume(ml)

2-1000

Product height(mm)

≦200

≦230

≦230

≦230

Product diameter(mm)

≦80

≦90

≦90

≦100

Total power(kw)

25

36

52

52
